Tool Connect+ Feature Matrix

This page outlines the currently available features for Tool Connect+ tools and batteries.

Updated 10/29/26

Identifying a Tool Connect+ tool

Look for the Tool Connect+ logo on a tool's packaging, website, and manual:

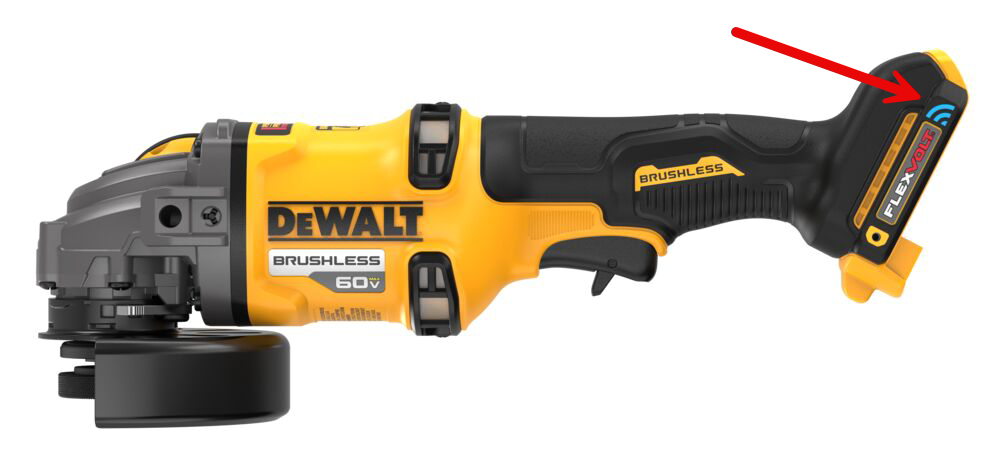

On the tool itself, look for the blue Tool Connect logo:

Base SKU	Description	Location	Runtime	Perform & Protect Events*	Control / Configuration
DCD150	60V MAX* 6-3/8 in. Core Drill	x	x	x
DCD446	20V MAX* XR® Brushless Cordless 1/2 in. Compact Stud & Joist Drill	x	x	x
DCD447	20V MAX* XR® Brushless Cordless 7/16 in. Quick Change Compact Stud & Joist Drill	x	x	x
DCE700	60V MAX* Cordless Pipe Threader	x	x
DCF896	20V MAX* TOOL CONNECT™ 1/2-in Mid-Range Detent Pin Anvil Impact Wrench	x	x		x
DCG418SHD	60V MAX* 4-1/2 in. - 6 in. Side Handle Detect Grinder	x	x
DCG460	60V MAX* 7-in - 9-in Large Angle Grinder	x	x
DCH614	60V MAX* Brushless Cordless 1-3/4-in SDS MAX Combination Rotary Hammer	x	x	x
DCH735	60V MAX* 1-7/8-in Brushless Cordless SDS MAX Combination Rotary Hammer	x	x	x
DCH775	60V MAX* 2-in Brushless Cordless SDS MAX Combination Rotary Hammer	x	x	x
DCH832	60V MAX* 15 lb. Cordless SDS MAX Chipping Hammer	x	x
DCH892	60V MAX* 22 lb. Cordless SDS MAX Chipping Hammer	x	x
DCL074	TOOL CONNECT™ 20V MAX* All-Purpose Cordless Work Light	x	x		x
DCPS310	POWERSHIFT™ Backpack Vibrator	x	x
DCPS320	POWERSHIFT™ Vibrator	x	x
DCPS330	POWERSHIFT™ Concrete Power Screed	x	x
DCPS612	POWERSHIFT™ 12 in. Cut-Off Saw	x	x
DCPS660	POWERSHIFT™ 60Kg Class Rammer	x	x
DCPS966	POWERSHIFT™ 1-1/8 in. Hex Demo Hammer	x	x
DCPS7154	POWERSHIFT™ Forward Plate Compactor	x	x
DCS301	60V MAX* Brushless Reciprocating Saw	x	x
DCS383	20V MAX* XR® 7-1/4 in. Metal Cutting Circular Saw	x	x
DCS587	60V MAX* Brushless 7-1/4 in. Worm Drive Saw	x	x
DCS588	60V MAX* Brushless 7-1/4 in. Circular Saw	x	x
DCS692	60V MAX* 9-in Brushless Cordless Cut-Off Saw	x	x

*Perform & Protect events are currently only available for anti-rotation type events. Look for this symbol on tools / packaging.

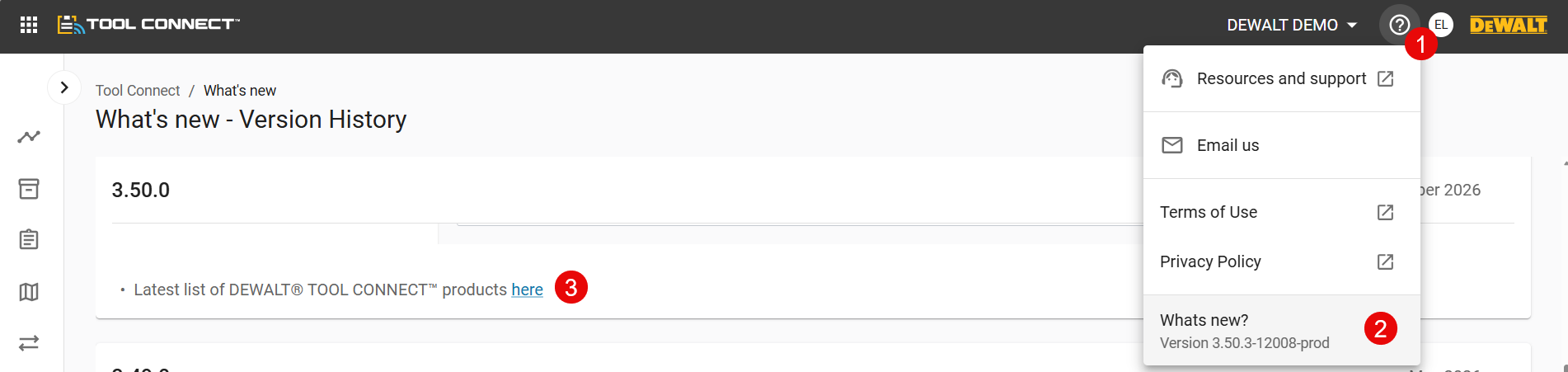

To view the latest list of all Tool Connect tools, including chip or tag ready tools, download the full list in Tool Connect itself.
